Highway Guardrail Roll Forming Machine 3.0mm 15KW

Brand Name : TECHWELL

Model Number : TW-HCM100

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Price : Contact Us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Delivery Time : 55-65 working days

Packaging Details : Standard packing

Thickness of sheet : 1.5-3.0mm

Material : GI, Carbon steel

Forming Structure : Welded Wall Plate Structure

Forming stations : 14 stations (Depend on profiles)

Shaft diameter : Φ 80mm

Main power : 15KW

Contact Now

Building Material Machinery Highway Guardrail Roll Forming Machine Highway Guardrail Making Machine


Main Specifications



1). 5 Ton Manual Uncoiler

  1. Machine frame: welding structure with shot lastingtreatment

  2. Components: Base, brake device, inner hole support, Expanding / tighten device

  3. Weight capacity: 5 Ton

  4. I.D: 500mm

  5. Max. coil width: 500mm

  6. O.D: Max. 1500mm


2). Feeding & Leveling Device

  1. 4 Rollers feeding
  2. 7 rollers leveling (Upper 3 rollers, lower 4 rollers)

3). Main Roll Forming Part

  1. Forming material thickness: 1.5-3.0mm
  2. Forming material type: GI or Carbon Steel
  3. Machine Frame: high grade steel welded and tempering treatment
  4. Shaft Material: 45# high grade steel tempering treatment
  5. Shaft Diameter: Φ 80mm
  6. Bearing: HRB bearing ( Top Chinese brand )
  7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
  8. Forming Station: ≈ 14 stations (Depend on profiles)
  9. Forming Speed: 0-15m/min excluding punching / cutting time
  10. Forming Motor: 15KW
  11. Drive type: Chain Drive
  12. Forming Speed: 0-15m/min

4). Hydraulic Cutting & Hydraulic Station

  1. Cutting type: hydraulic cutting
  2. When cutting, machine stop
  3. cutting tolerance: 10m+/-1.5mm
  4. Encoder: OMRON brand
  5. Hydraulic Power: 7.5KW

5). PLC Control System

  1. The entire line is controlled by imported PLC, LCD touch screen human-machine interface. People interact with the PLC. Operator by setting the program to run automatically (programmable control) to monitor and control process, to achieve the operator to control the production line and modify the control parameters, and real-time monitoring of equipment status, operating parameters and fault indication. Work piece length digital setting, work piece length adjustable. Real-time monitoring of equipment operating status and fault indication.
  2. Operation: manual / automatic. It is convenient to maintenance with the manual model and there are emergency stop bottom on it.

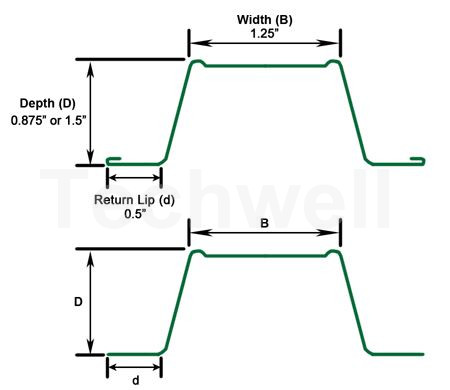

Reference Profile Drawing



Working Flow Chart


Decoiler → Feeding Guide → Leveling → Main Roll Forming → Hydraulic Cutting → Support Table
